AI Flight Controller
Dual Core
Powerful Computing. Dual Vision. Intelligent Flight.
Dual-core AI flight controller for 5-18 inch quadcopters, combining smart assisted and mandatory AI lock modes, dual camera support, and Beta Flight firmware.
Product Capabilities
Built around dual vision, AI lock performance, receiver compatibility, and FPV-ready control links.
Adapt to more scenarios
1080P digital camera support, 4mm / 10mm lenses, 60FPS, CVBS output, and available starlight night vision.
Smart assisted and mandatory lock

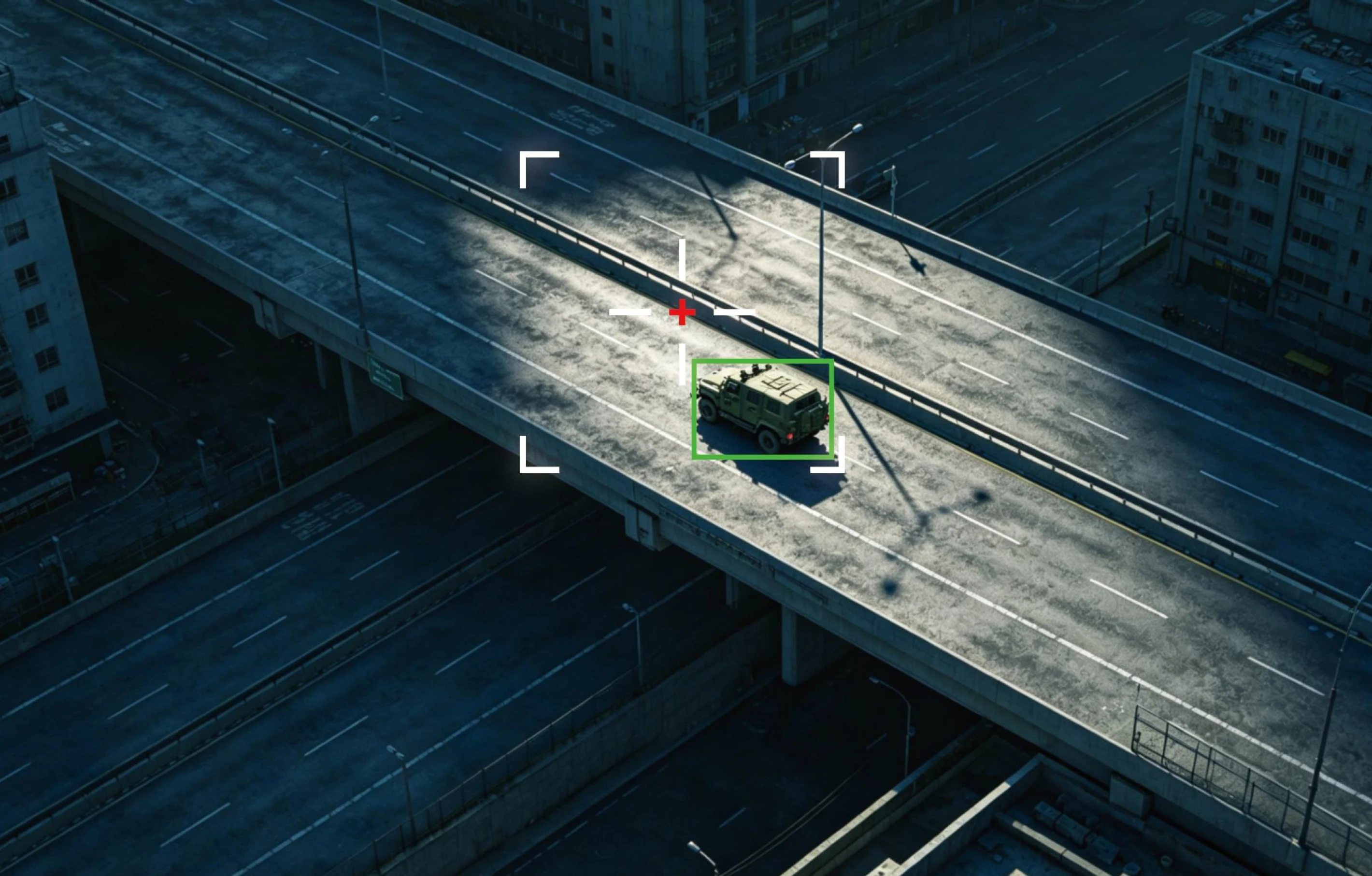

Smart Assisted Lock (CH10) uses AI bounding boxes; AI Mandatory Lock (CH11) uses crosshair targeting. Minimum target size: 16x16 pixels.
Receiver and control links
ELRS(CRSF) receiver protocol, DSHOT 300/600 ESC protocol, and two-channel PWM servo signal.
Built for 5-18 inch quadcopters
4S - 12S LiPo input, 2W power consumption, 10 g weight, and Beta Flight firmware with no extra purchase.
Main Parameters
These values follow the latest supplied AI Flight Controller specification. Earlier marketing posters may show older figures.
Core Specs
- Core Specs Supported Frames
- 5-18 inch quadcopters
- Firmware
- Beta Flight (No extra purchase.)
- Input Voltage
- 4S - 12S LiPo
- Power Consumption
- 2W
- Weight
- 10 g
Camera & Vision
- Camera & Vision Camera Compatibility
- 1080P Digital Camera
- Lens Focal Length
- 4mm / 10mm
- Frame rate
- 60FPS
- Camera Angle
- 20-60°
- Field of View (FOV)
- 96° / 39.7°
- Video Output Format
- CVBS
- Starlight Night Vision
- Available
AI Performance
- AI Performance AI Lock Range
- Vehicle: 450m | Person: 150m / Vehicle: 800m+ | Person: 250m+
- Minimum Target Size
- 16x16 pixels
- Max Target Speed
- > 80km/h
- AI Lock Modes

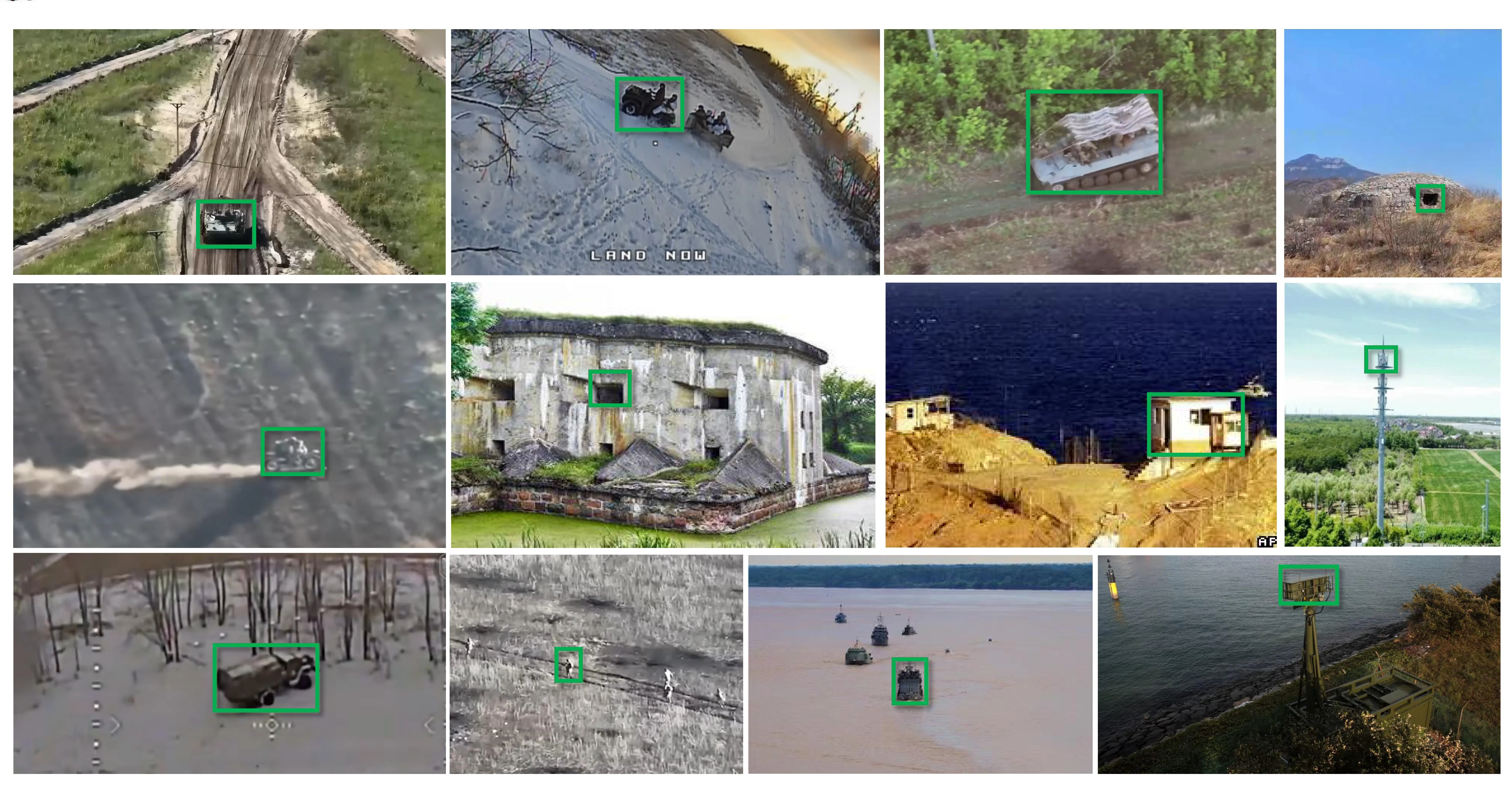

- Mode 1: Smart Assisted Lock(CH10): Smart auto lock using AI bounding boxes, optimized for vehicles and characters. Mode 2: AI Mandatory Lock(CH11): Crosshair mandatory lock, capable of locking onto any kind of targets, moving and stationary.
Peripherals & Connectivity
- Peripherals & Connectivity Receiver Protocol
- ELRS(CRSF)
- ESC Protocol
- DSHOT 300/600
- Servo
- Two-channel PWM servo signal
Environmental
- Environmental Operating Temperature
- -25°C to 55°C
